特征：
符合OIML認證指標
高精度
IP66 防護
易于安裝，性能穩定
鋁合金
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.2% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.2% | ||
| Hysteresis Error 滯后 | <±0.2% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.2% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 415Ω±5 | IP Rating 防護等級 | IP66 |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Aluminum 鋁合金 | ||

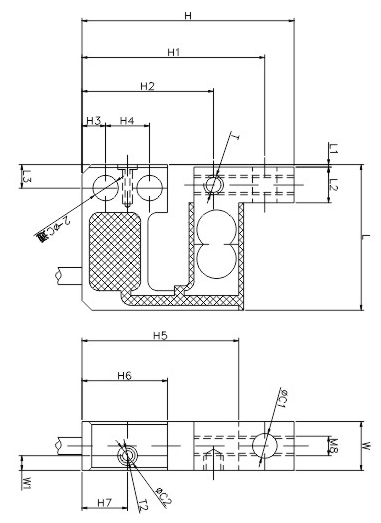

| DIMENSIONS 尺寸 | |||||||||||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | L | L1 | L2 | L3 | W | W1 | H | H1 | H2 | H3 | H4 | H5 | H6 | H7 | T | T1 |
kg/mm 1-10 | 5.2 | 5 | 4 | 30 | 0.5 | 7 | 4.8 | 10 | 3 | 43.4 | 37.4 | 26.9 | 4.8 | 9 | 32.1 | 17.5 | 9.3 | M4深4 | M3深6 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | |||||||||||||||||||
| 2.205-22.05 | 0.21 | 0.20 | 0.16 | 1.18 | 0.02 | 0.28 | 0.19 | 0.39 | 0.12 | 1.71 | 1.47 | 1.06 | 0.19 | 0.35 | 1.26 | 0.69 | 0.37 | M4 DP 0.16 | M6 DP 0.24 |
