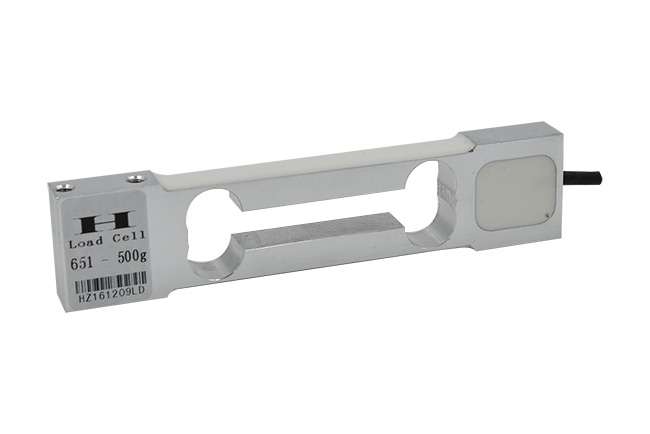

量程：500g,1Kg,2Kg,3Kg
總誤差低于輸出靈敏度的0.006%
適用于電子天平，高精度珠寶秤，以及各種高精度的電子稱重設備
特征：
常溫下，分度值可高達60,000
角差修正
單點式臺面
IP66防護
| SPECIFICATIONS 技術參數 | ||||
| Full Scale Output 靈敏度輸出 | 1.0±20%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) | |
| Zerc Balance 零點輸出 | ±0.02mV/V | Reference Max.Platform Size | Capacity<1Kg:200*200mm | |
| Non-linearity 非線性 | <±0.017% | 大秤臺尺寸 | Capacity<1Kg:230*230mm | |
| Repeatability 重復性 | <±0.017% | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ | |
| Hysteresis Error 滯后 | <±0.017% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ | |
| Creep in 30 min 30分鐘蠕變 | <±0.008% | <±0.012% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 2 min 20分鐘蠕變 | <±0.0033% | <±0.005% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 405Ω±15 | IP Rating 防護等級 | IP66 | |
| Output Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) | |
| Element Materia 材質 | Aluminum 鋁合金 | |||
| DIMENSIONS 尺寸 | |||||||||||
RATE CAPACITY 量程 | L | L1 | L2 | L3 | L4 | L5 | L6 | W | H | T | T1 |
| kg/mm 0.5-3 | 130 | 3.25 | 17 | 89.5 | 17 | 11.5 | 5 | 12 | 29 | M3深12 | M4深12 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | |||||||||||
| 1.10-2.20 | 5.12 | 0.13 | 0.67 | 3.52 | 0.67 | 0.45 | 0.20 | 0.47 | 1.14 | M3 DP 0.47 | M4 DP 0.47 |
