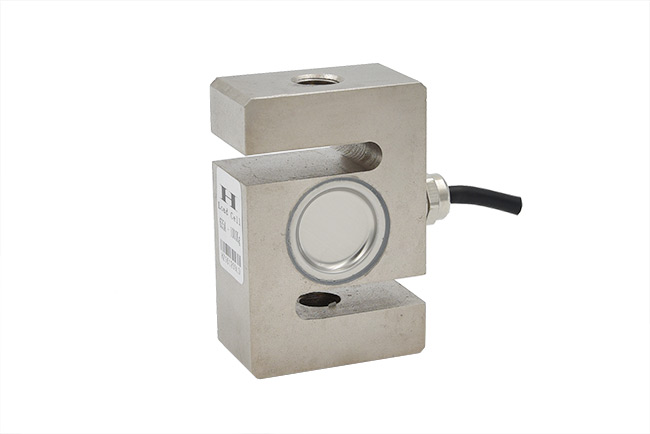

量程：50Kg,100Kg,200Kg,300Kg,500Kg,1000Kg,
SE-2000Kg,2000Kg,5000Kg,10000Kg
適用于吊秤，機械轉換秤，料斗秤以及其他稱重設備
特征：
符合OIML R60 C3認證指標，通常分度值可達到C3，5000
拉壓兩用
防爆（Ex ib II CT4）
IP66/677防護
可選項為：-耐溫120℃［248°F ］，防雷-6線制-不銹鋼
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output靈敏度輸出(Ib/英制) | 3.0±1%mV/V | Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 |
| Full Scale Output靈敏度輸出(Kg/公制) | 2.0±1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.017% | Nominal Temperature Range 工作溫度 | -10℃to50℃/14℉to122℉ |
| Repeatability 重復性 | <±0.017% | Safe Overload 安全過載 | 150% of full scale |
| Hysteresis Error 滯后 | <±0.017% | Breaking Overload 極限過載 | 300% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.023% | IP Rating 防護等級 | IP67 |
| Input Resistance 輸入電阻 | 400Ω±20 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Output Resistance 輸出電阻 | 350Ω±3 | ||

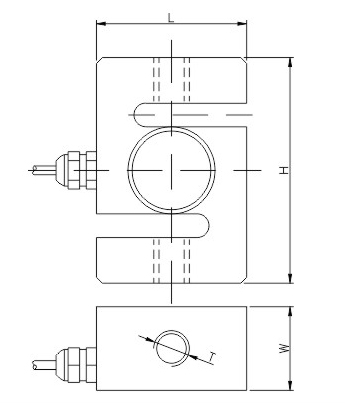

| DIMENSIONS 尺寸 | |||||
RATE CAPACITY 量程 | L | W | H | T | |
| kg/mm | |||||
| 50-200 | 50.8 | 19 | 76.2 | M12×1.75 | |
| 200-2000 | 50.8 | 28.2 | 76.2 | M12×1.75 | |
| 2000-5000 | 76.2 | 25.4 | 108 | M18×1.50 | |
| 10000 | 125 | 50.8 | 177.8 | M30×2.0 | |
| L | W | H | W1 | T | |
| lb/inches | |||||
| 50-250 | 2.00 | 0.65 | 2.50 | 0.50 | 1/4-28UNF |
| 500 | 2.00 | 0.75 | 3.00 | － | 1/2-20UNF |
| 1000-3000 | 2.00 | 1.11 | 3.00 | － | 1/2-20UNF |
| 4000-10000 | 3.00 | 1.00 | 4.00 | － | 3/4-16UNF |
| 15000 | 4.00 | 1.25 | 5.50 | － | 1-14UNF |
| 20000 | 4.92 | 2.00 | 7.00 | － | 1.1/4-12UNF |
