特征：
易于安裝，性能穩定
抗過載能力強
適用于限位過載用途
IP67 防護
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.5%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.04mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.03% | Nominal Temperature Range工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.03% | ||
| Hysteresis Error 滯后 | <±0.03% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.05% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 415Ω±5 | IP Rating 防護等級 | IP67 |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Aluminum 鋁合金 | ||

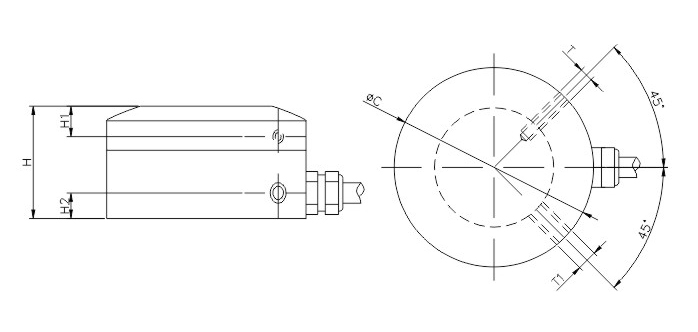

| DIMENSIONS 尺寸 | ||||||
RATE CAPACITY 量程 | C | H | H1 | H2 | T | T1 |
kg/mm 0.5-50 | 58.5 | 33 | 9 | 7.5 | M4深16 | M6 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||
| 1.1-110 | 2.30 | 1.30 | 0.35 | 0.30 | M4 DP 0.63 | M6 |
