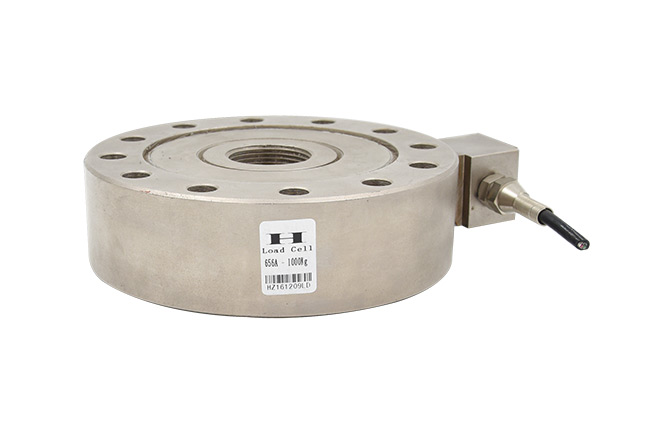

量程：1000Kg.....30000Kg
適用于汽車衡、船載稱重、小尺寸臺秤、測力計、材料檢驗設備以及環境監測儀。
特征：
以O(shè)IML R60 C3為標準，分度值達1000
尺寸小，拉壓兩用型
偏載小，結構緊湊，適合戶外稱重
高兼容動態稱重
Ip67防護
可選：-耐溫120℃[248°F],防雷 -6線制 -不銹鋼
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.04mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.05% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.3% | ||
| Hysteresis Error 滯后 | <±0.05% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.05% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 770Ω±30 | IP Rating 防護等級 | IP67 |
| Outnput Resistance 輸出電阻 | 700Ω±5 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

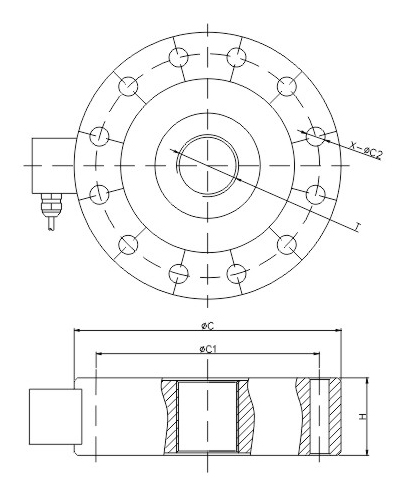

| DIMENSIONS 尺寸 | ||||||
RATE CAPACITY 量程 | C | C1 | X | C2 | H | T |
| t/mm | ||||||
| 1-5 | 113 | 97 | 8 | 7 | 35 | M24×2 |
| 10-20 | 155 | 130 | 12 | 11 | 45 | M36×2 |
| 30 | 180 | 150 | 12 | 13 | 58 | M42×2 |
| 50 | 205 | 165 | 16 | 13 | 64 | M42×2 |
| 100 | 280 | 228 | 25.4 | 17 | 90 | M70×3 |
| 200 | 296 | 256 | 38.1 | 22 | 120 | M90×3 |
| 300 | 346 | 282 | 50.8 | 26 | 180 | M120×3 |
| klb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||
| 2.2-11.02 | 4.45 | 3.82 | 0.31 | 0.28 | 1.38 | M24×2 |
| 22.04;44.09 | 6.10 | 5.12 | 0.47 | 0.51 | 2.28 | M36×2 |
| 66.1 | 7.09 | 5.90 | 0.47 | 0.51 | 2.28 | M42×2 |
| 110.2 | 8.07 | 6.50 | 0.63 | 0.51 | 2.52 | M42×2 |
| 220.5 | 11.02 | 8.98 | 1.00 | 0.67 | 3.54 | M70×3 |
| 440.9 | 11.6 | 10.08 | 1.50 | 0.87 | 4.72 | M90×3 |
| 661.4 | 13.62 | 11.10 | 2.00 | 1.02 | 7.09 | M120×3 |
