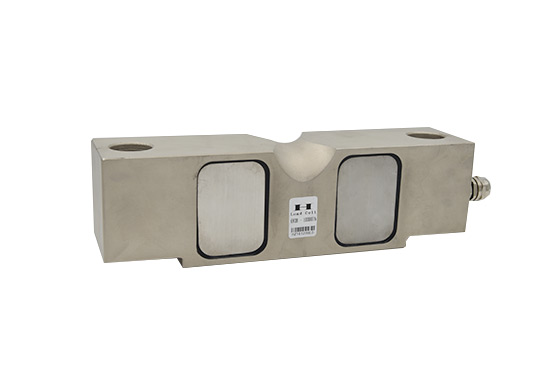

量程：10KLb,25KLb,40KLb,,50KLb,75KLb
適用于罐裝秤
特征：
符合OIML認證指標
高精度
合金鋼
易于安裝，性能穩定
合金鋼/不銹鋼
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.04mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.03% | Nominal Temperature Range工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.03% | ||
| Hysteresis Error 滯后 | <±0.03% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.05% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 775Ω±5 | IP Rating 防護等級 | IP67/IP68 |
| Outnput Resistance 輸出電阻 | 702Ω±2 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

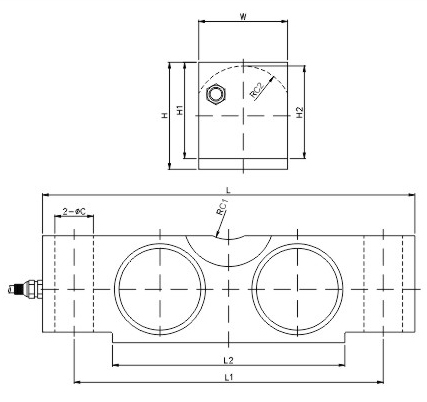

| DIMENSIONS 尺寸 | ||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | L | L1 | L2 | W | H | H1 | H2 |
| t/mm | ||||||||||
| 22.05-55.1 | 17.3 | 19.1 | 22.9 | 196.9 | 165.1 | 125.1 | 42.9 | 49.3 | 43.2 | 40.7 |
| 88.18-110.2 | 20.6 | 25.4 | 28.5 | 260.4 | 215.9 | 162.4 | 49.3 | 62 | 53.3 | 49.8 |
| 110.23-165.34 | 27 | 25.4 | 34.8 | 260.4 | 215.9 | 162.4 | 60.2 | 74.7 | 67.3 | 62.3 |
| klb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||||||
| 10-25 | 0.68 | 0.75 | 0.90 | 7.75 | 6.50 | 4.92 | 1.69 | 1.94 | 1.70 | 1.60 |
| 40 | 0.81 | 1.00 | 1.12 | 10.25 | 8.50 | 6.40 | 1.94 | 2.44 | 2.10 | 1.96 |
| 50-75 | 1.06 | 1.00 | 1.37 | 10.25 | 8.50 | 6.40 | 2.37 | 2.94 | 2.65 | 2.45 |
