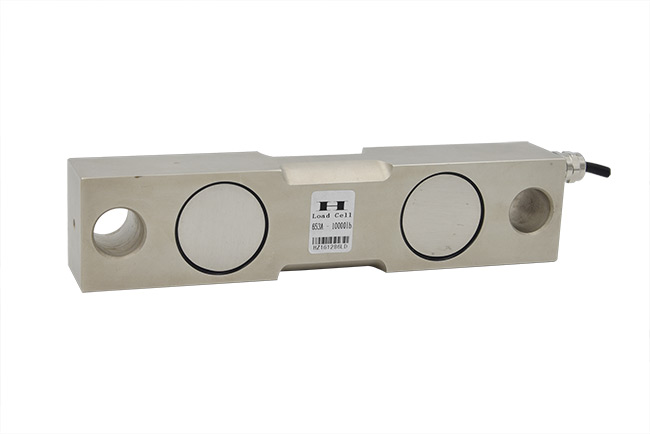

量程：10KLb,20KLb,35KLb,50KLb,75KLb,100KLb
適用于汽車軸重儀以及其他稱重設備
特征：
符合OIML認證指標
高精度
合金鋼
易于安裝，性能穩定
合金鋼/不銹鋼
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±1.0mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.3% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.3% | ||
| Hysteresis Error 滯后 | <±0.3% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.3% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 775Ω±5 | IP Rating 防護等級 | IP67/IP68 |
| Outnput Resistance 輸出電阻 | 702Ω±2 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

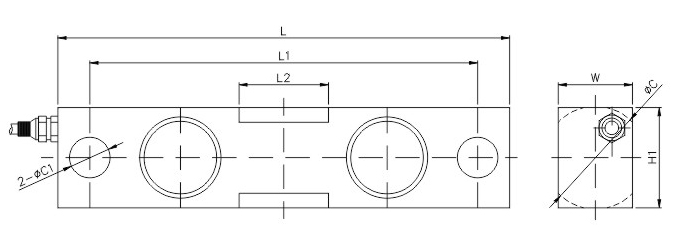

| DIMENSIONS 尺寸 | |||||||
RATE CAPACITY 量程 | C | C1 | L | L1 | L2 | W | H |
| t/mm | |||||||
| 22-55 | 50.5 | 20.6 | 222.3 | 190.5 | 41.1 | 36.6 | 49.3 |
| 77 | 64.8 | 20.6 | 222.3 | 190.5 | 41.1 | 38.1 | 63.5 |
| 110-165 | 75.9 | 33.3 | 393.7 | 292.1 | 82.5 | 62 | 74.7 |
| 220 | 107.9 | 41.4 | 469.9 | 381 | 82.5 | 74.7 | 100.1 |
| klb/inches(conversion of above dimensions 由以上尺寸轉換) | |||||||
| 10-25 | 1.99 | 0.81 | 8.75 | 7.50 | 1.62 | 1.44 | 1.94 |
| 35 | 2.55 | 0.81 | 8.75 | 7.50 | 1.62 | 1.50 | 2.50 |
| 50-75 | 2.99 | 1.31 | 15.50 | 11.50 | 3.25 | 2.44 | 2.94 |
| 100 | 4.25 | 1.63 | 18.50 | 15.00 | 3.25 | 2.9 | 3.94 |
