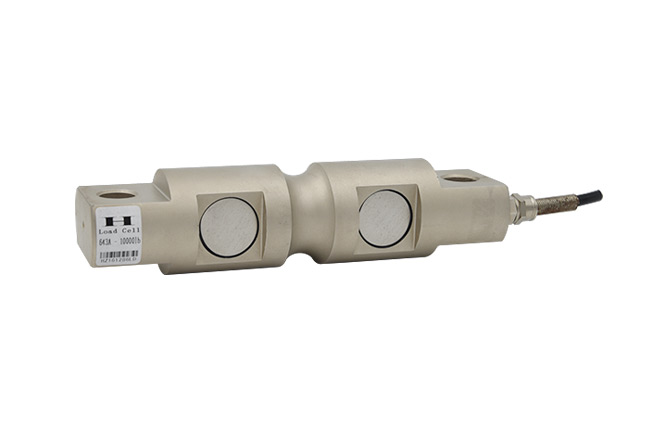

量程：5KLb,10KLb,20KLb,30KLb,60KLb,100KLb,150KLb,200KLb
適用于汽車衡，以及其他稱重設備
特征：
符合OIML認證指標
高精度
合金鋼
易于安裝，性能穩定
合金鋼/不銹鋼
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±1.0mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.3% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.3% | ||
| Hysteresis Error 滯后 | <±0.3% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.3% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 775Ω±5 | IP Rating 防護等級 | IP67/IP68 |
| Outnput Resistance 輸出電阻 | 702Ω±2 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

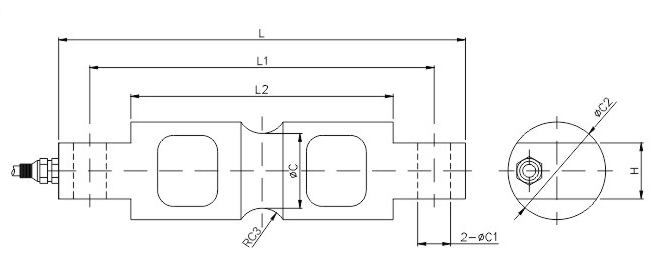

| DIMENSIONS 尺寸 | ||||||||
RATE CAPACITY 量程 | C | C1 | C2 | C3 | L | L1 | L2 | H |
| t/mm | ||||||||
| 2.268-4.536 | 37.6 | 16.8 | 43.2 | 12.7 | 206.3 | 174.8 | 133.1 | 28.5 |
| 9.07 | 37.6 | 16.8 | 49.3 | 12.7 | 206.3 | 174.8 | 133.1 | 28.5 |
| 13.608-27.216 | 69.3 | 26.9 | 76.2 | 25.4 | 260.4 | 215.9 | 164.8 | 60.2 |
| 45.36 | 82.3 | 26.9 | 95.3 | 25.4 | 285.8 | 241.3 | 190.2 | 63.5 |
| 68.04 | 92.5 | 26.9 | 99.1 | 38.1 | 285.8 | 241.3 | 190.2 | 71.1 |
| 90.72 | 131.1 | 39.6 | 136.7 | 50.8 | 409 | 330.2 | 254 | 116.8 |
| klb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||||
| 5-10 | 1.48 | 0.66 | 1.70 | 0.50 | 8.12 | 6.88 | 5.24 | 1.12 |
| 20 | 1.48 | 0.66 | 1.94 | 0.50 | 8.12 | 6.88 | 6.49 | 1.12 |
| 30-60 | 2.73 | 1.06 | 3.00 | 1.00 | 10.25 | 8.50 | 6.49 | 2.37 |
| 100 | 3.24 | 1.06 | 3.75 | 1.00 | 11.25 | 9.50 | 7.49 | 2.50 |
| 150 | 3.64 | 1.06 | 3.90 | 1.50 | 11.25 | 9.50 | 7.49 | 2.80 |
| 200 | 5.16 | 1.56 | 5.38 | 2.00 | 16.10 | 13.00 | 10.00 | 4.60 |
