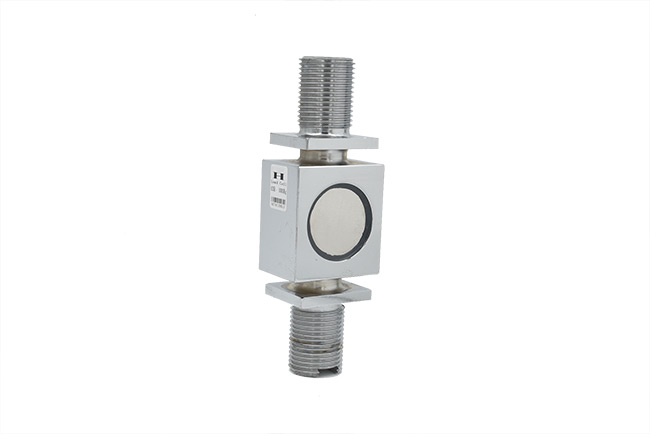

量程：10000Kg,20000Kg,50000Kg
適用于吊秤，以及其他稱重設備
特征：
符合OIML認證指標
IP67防護
防爆（Ex ib II Ct4）
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±10%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.017% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.017% | ||
| Hysteresis Error 滯后 | <±0.017% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.02% | Breaking Overload 極限過載 | 200% of full scale |
| Input Resistance 輸入電阻 | 350Ω±10 | IP Rating 防護等級 | IP67 |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

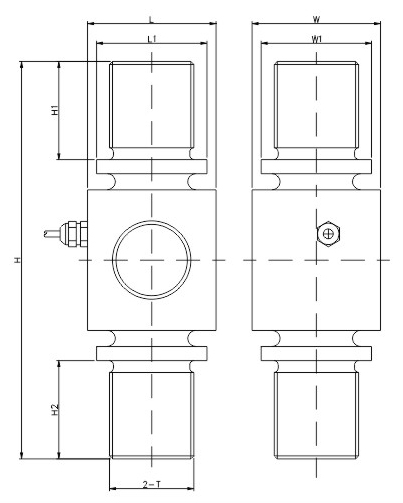

| DIMENSIONS 尺寸 | |||||
RATE CAPACITY 量程 | L | W | H | T | |
| kg/mm | |||||
| 50-200 | 50.8 | 19 | 76.2 | M12×1.75 | |
| 300-1000 | 50.8 | 28.2 | 76.2 | M18×1.50 | |
| 2000-5000 | 76.2 | 25.4 | 108 | M24×2.0 | |
| 10000 | 125 | 50.8 | 177.8 | M30×2.0 | |
| L | W | H | W1 | T | |
| lb/inches | |||||
| 50-250 | 2.00 | 0.65 | 2.50 | 0.50 | 1/4-28UNF |
| 500 | 2.00 | 0.75 | 3.00 | － | 1/2-20UNF |
| 1000-3000 | 2.00 | 1.11 | 3.00 | － | 1/2-20UNF |
| 5000-10000 | 3.00 | 1.00 | 4.00 | － | 3/4-15UNF |
| 15000 | 4.00 | 1.25 | 5.50 | － | 1-14UNS |
| 20000 | 4.92 | 2.00 | 7.00 | － | 11/4-12UNF |
