量程：60Kg,100Kg,150Kg,200Kg,300Kg,500Kg,600Kg,750Kg
適用于臺秤，分蛋器等
特征：
符合OIML認證指標
角差修正
IP6防護
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±10%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Reference Max.Platform Size 大秤臺尺寸 | 600*700mm |
| Non-linearity 非線性 | <±0.017% | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Repeatability 重復性 | <±0.017% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Hysteresis Error 滯后 | <±0.017% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.02% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 405Ω±15 | IP Rating 防護等級 | IP66 |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Aluminum 鋁合金 | ||

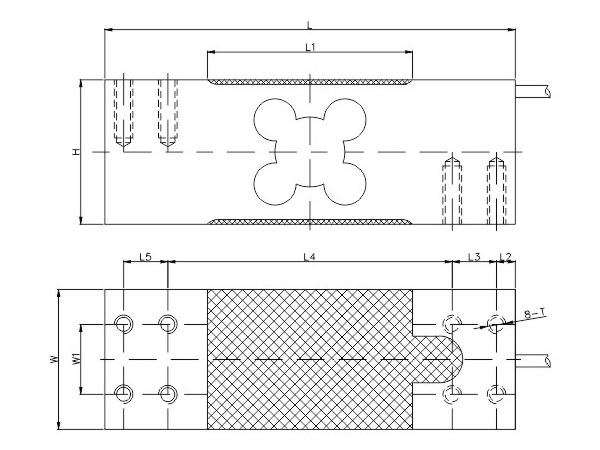

| DIMENSIONS 尺寸 | ||||||||||
RATE CAPACITY 量程 | L | L1 | L2 | L3 | L4 | L5 | W | W1 | H | T |
| kg/mm 50-1000 | 176 | 88 | 8 | 19 | 122 | 19 | 60 | 30 | 62 | M8深20 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||||||
| 44.09-2204.6 | 6.93 | 3.46 | 0.31 | 0.75 | 4.80 | 0.75 | 7.36 | 1.18 | 2.44 | M8DP 0.79 |
