量程：10Kg,15Kg,20Kg,30Kg,50Kg,75Kg,100Kg,200Kg,300Kg
適用于臺秤，皮帶秤等電子稱重設備
特征：
符合OIML認證指標
通常精度可達到C3，5000分度值
角差修正
IP66防護
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±10%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Reference Max.Platform Size 大秤臺尺寸 | 450*450mm |
| Non-linearity 非線性 | <±0.017% | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Repeatability 重復性 | <±0.017% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Hysteresis Error 滯后 | <±0.017% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.023% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 405Ω±15 | IP Rating 防護等級 | IP66 |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Aluminum 鋁合金 | ||

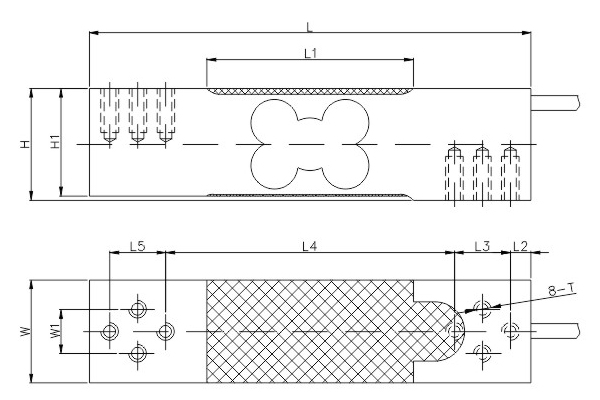

| DIMENSIONS 尺寸 | |||||||||||
| RATE CAPACITY 量程 | L | L1 | L2 | L3 | L4 | L5 | W | W1 | H | H1 | T |
| kg/mm 30-300 | 150 | 70 | 7 | 19 | 98 | 19 | 35 | 15 | 38 | 36.5 | M6深15 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | |||||||||||
| 66.14-661.4 | 5.91 | 2.76 | 0.28 | 0.75 | 3.86 | 0.75 | 1.38 | 0.59 | 1.50 | 1.44 | M6 DP 0.59 |
