量程：500Kg,1000Kg,2000Kg,2500Kg,3000Kg,3500Kg,
5000Kg,10000Kg,15000Kg,20000Kg,25000Kg,50000Kg
適用于汽車衡，漏斗秤以及各種稱重設備
特征：
符合OIML認證指標
尺寸小，靈敏度高
防爆（Ex ib II Ct4）
IP7防護
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.023% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.017% | ||
| Hysteresis Error 滯后 | <±0.023% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.023% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 350Ω±7 | IP Rating 防護等級 | IP67 |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

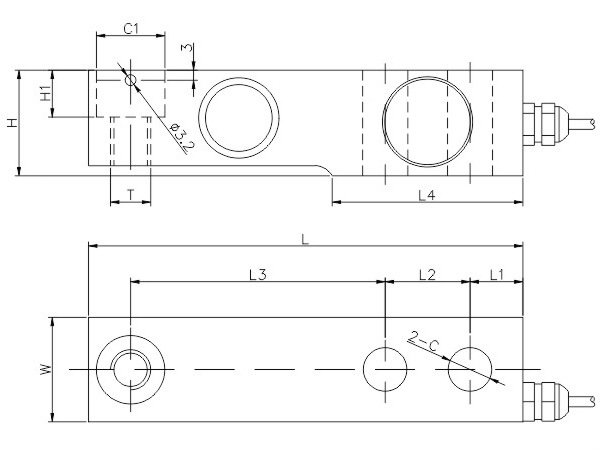

| DIMENSIONS 尺寸 | ||||||||||
RATE CAPACITY 量程 | C | C1 | L | L1 | L2 | L3 | L4 | H | H1 | W |
| kg/mm | ||||||||||
| 50-1000 | 13 | 20.5 | 130 | 15.7 | 25.4 | 76.2 | 57.1 | 31.6 | 14 | 31.3 |
| 1500;2000 | 13 | 20.5 | 130 | 15.7 | 25.4 | 76.2 | 57.1 | 35.7 | 14 | 31.3 |
| 5000 | 20.4 | 30.2 | 172 | 19.1 | 38.1 | 95.3 | 76.2 | 43.8 | 19.8 | 37.5 |
| klb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||||||
| 500-2500 | 0.51 | 0.81 | 5.12 | 0.62 | 1.00 | 3.00 | 7.25 | 1.24 | 0.55 | 1.23 |
| 4000;5000 | 0.51 | 0.81 | 5.12 | 0.62 | 1.00 | 3.00 | 2.25 | 1.40 | 0.55 | 1.23 |
| 10000 | 0.80 | 1.19 | 6.77 | 0.75 | 1.50 | 3.75 | 3.00 | 1.72 | 0.78 | 1.48 |
