量程：5Kg,10Kg,20Kg,50Kg,100Kg,200Kg,350Kg,500Kg
適用于皮帶秤，臺秤以及各種稱重設備
特征：
符合OIML認證指標
高精度
易于安裝，性能穩定
合金鋼
不銹鋼
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.017% | Nominal Temperature Range工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.017% | ||
| Hysteresis Error 滯后 | <±0.017% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.023% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 460Ω±50 | IP Rating 防護等級 | IP67/IP68 |
| Outnput Resistance 輸出電阻 | 351Ω±2 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

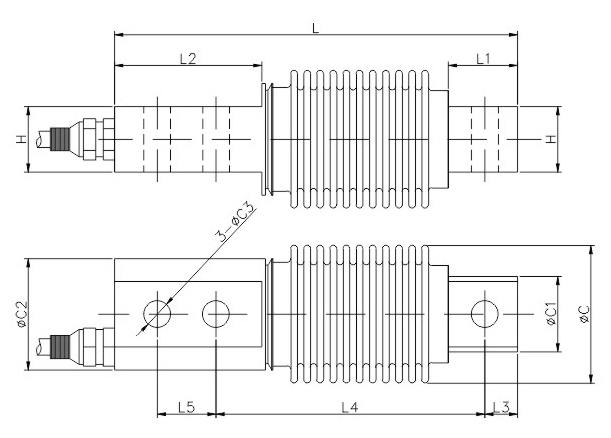

| DIMENSIONS 尺寸 | ||||||||||
RATE CAPACITY 量程 | L | L1 | L2 | L3 | L4 | W | H | H1 | T | T1 |
| kg/mm 50-300 | 125 | 48 | 64 | 8 | 27 | 29 | 45 | 24 | M8深16 | M8深16 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||||||
| 110.2-661.4 | 4.92 | 1.89 | 2.52 | 0.31 | 1.06 | 1.14 | 1.77 | 0.94 | M8 DP 0.63 | M8 DP 0.63 |
